A Kubernetes cluster spread across four countries (Netherlands, Switzerland, Norway, Greece) with my own ASN and BGP anycast routing. The excuse was disaster recovery. The real reason was wanting to understand how the internet works at the routing level.
Overview
| Aspect | Details |
|---|---|
| Countries | Netherlands, Switzerland, Norway, Greece |
| Architecture | Hybrid (on-premises + cloud VPS) |
| Routing | BGP anycast with personal ASN |
| IPv6 | /48 prefix via RIPE LIR |
| Nodes | 13 across 2 operational sites (NL, GR) |
Key Technical Components
BGP & Networking
- Personal ASN registration via RIPE LIR with /48 IPv6 prefix
- eBGP peering with two upstream transit providers for anycast redundancy
- iBGP mesh over IPsec/WireGuard tunnels using Cilium BGP control plane
- NAT64 edge translation enabling IPv6 ingress to IPv4 core infrastructure
Site Connectivity
- Full mesh encrypted tunnels between on-premises (Cisco ASA) and cloud sites (strongSwan)
- Geo-distributed edge nodes for latency optimization and DDoS resilience
- IPsec tunnels with automatic failover
Kubernetes Platform
- Cilium CNI with eBPF dataplane
- BGP control plane for LoadBalancer services
- Cross-cluster service mesh via Cilium Cluster Mesh

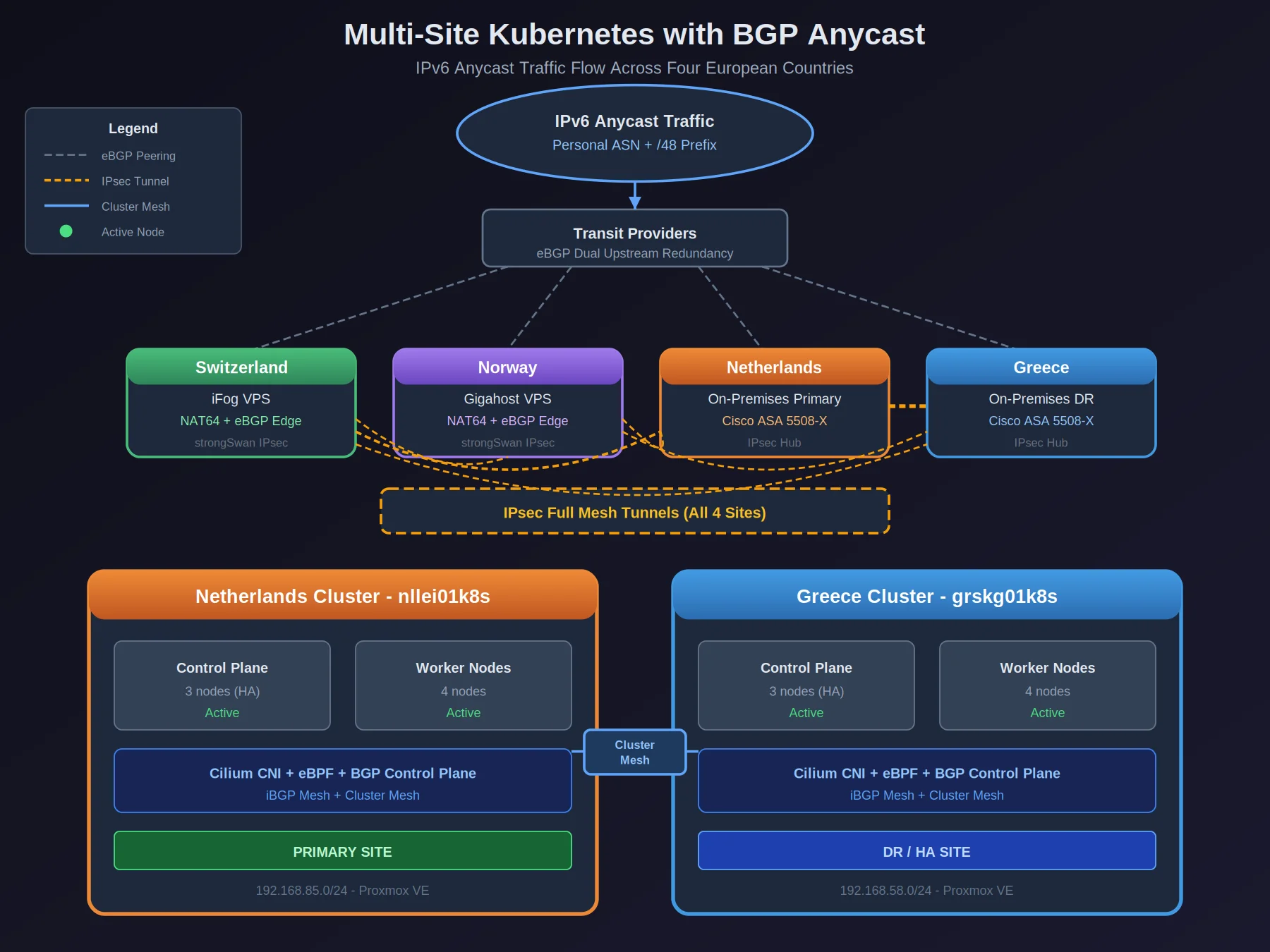

Architecture
┌─────────────────────────────────┐
│ IPv6 Anycast Traffic │
│ (Personal ASN + /48) │
└───────────────┬─────────────────┘
│
┌───────────────┴───────────────┐
│ Transit Providers │
│ (eBGP - Redundant Path) │
└───────────────┬───────────────┘
│
┌────────────────┬───────────────┼───────────────┬────────────────┐
│ │ │ │ │
▼ ▼ │ ▼ ▼
┌───────────────┐ ┌───────────────┐ │ ┌───────────────┐ ┌───────────────┐
│ Switzerland │ │ Norway │ │ │ Netherlands │ │ Greece │
│ (iFog VPS) │ │(Gigahost VPS) │ │ │ (On-Prem) │ │ (On-Prem) │
│ strongSwan │ │ strongSwan │ │ │ Cisco ASA │ │ Cisco ASA │
│ NAT64+eBGP │ │ NAT64+eBGP │ │ │ 5508-X │ │ 5508-X │
└───────┬───────┘ └───────┬───────┘ │ └───────┬───────┘ └───────┬───────┘
│ │ │ │ │
│ │ │ │ │
└─────────────────┴──────────────┴──────────────┴─────────────────┘
│
┌────────────────────┴────────────────────┐
│ IPsec Full Mesh (All 4 Sites) │
│ CH ←→ NO ←→ NL ←→ GR ←→ CH ←→ NL... │
└────────────────────┬────────────────────┘
│
┌──────────────────────────┴──────────────────────────┐
│ │
▼ ▼
┌─────────────────────────────────┐ ┌─────────────────────────────────┐
│ Netherlands (NL) │ │ Greece (GR) │
│ nllei01k8s │ │ grskg01k8s │
│ ┌───────────────────────────┐ │ │ ┌───────────────────────────┐ │
│ │ 3x Control Plane (HA) │ │ │ │ 3x Control Plane (HA) │ │
│ │ 4x Worker Nodes │ │ │ │ 4x Worker Nodes │ │
│ │ Cilium CNI + iBGP │ │ │ │ Cilium CNI + iBGP │ │
│ │ Proxmox VE │ │ │ │ Proxmox VE │ │
│ └───────────────────────────┘ │ │ └───────────────────────────┘ │
│ PRIMARY SITE │◄───────►│ DR/HA SITE │
│ 192.168.85.0/24 │ Cluster │ 192.168.58.0/24 │
└─────────────────────────────────┘ Mesh └─────────────────────────────────┘
Technology Stack
Networking
- BGP: Personal ASN with /48 IPv6 prefix
- Transit: Dual upstream providers for redundancy
- Tunneling: IPsec (Cisco ASA) + strongSwan (cloud)
- Edge: NAT64 for IPv6→IPv4 translation
Kubernetes
- Version: v1.34.2
- CNI: Cilium with eBPF dataplane
- Mesh: Cilium Cluster Mesh for cross-site connectivity
- Ingress: NGINX with BGP-advertised VIPs
Infrastructure
- On-premises: Proxmox VE, Cisco ASA 5508-X
- Cloud: iFog (Switzerland), Gigahost (Norway)
- Storage: SeaweedFS with cross-site replication
Status
Current: Netherlands and Greece operational (primary + DR) Transit: Switzerland (iFog) and Norway (Gigahost) operational as edge/transit nodes
Read the full build story in the blog post .
