Multi-Site Kubernetes Cluster with BGP Anycast

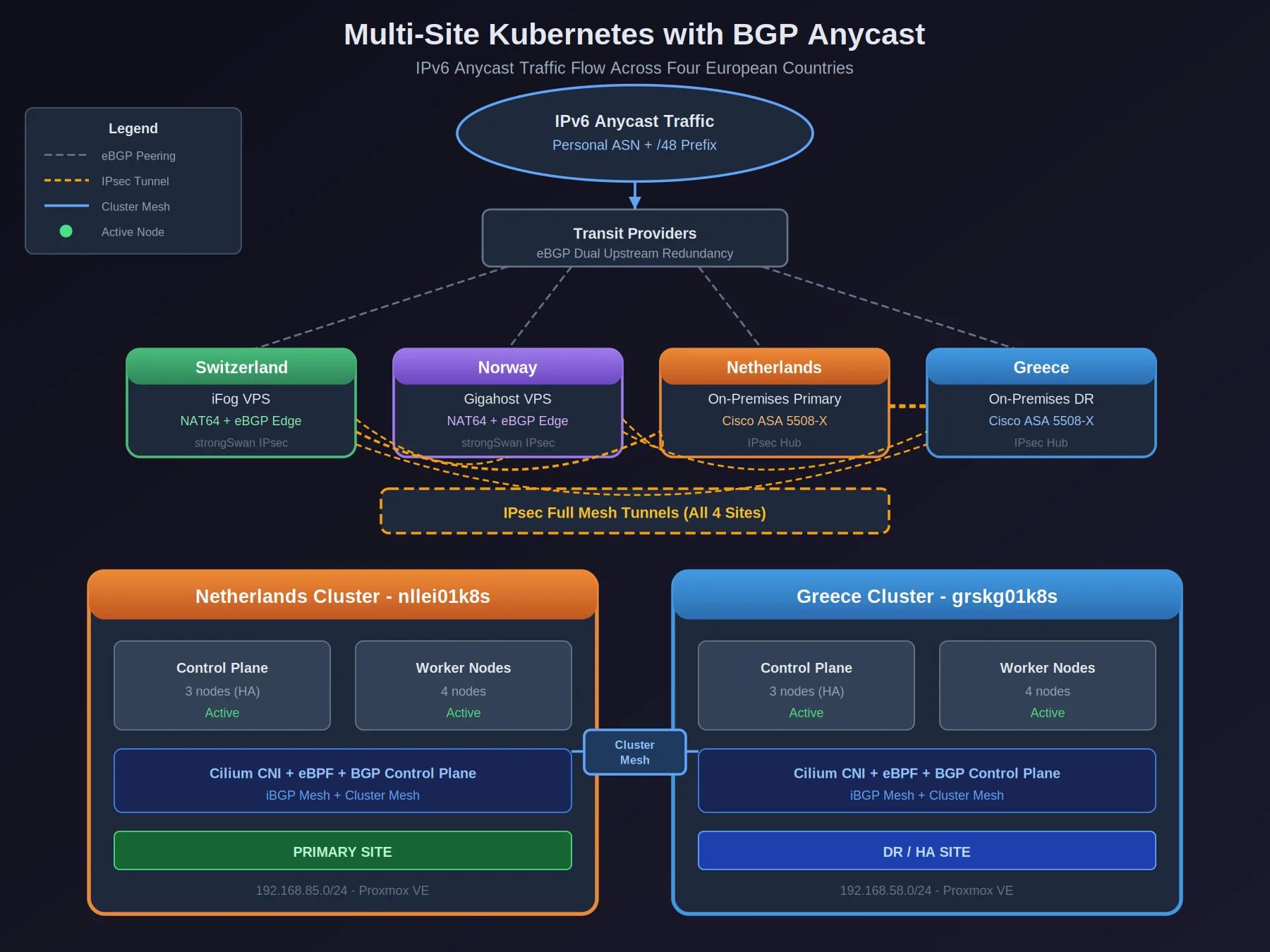

Designing and building a hybrid Kubernetes cluster spanning four European countries (Netherlands, Switzerland, Norway, Greece) with BGP anycast routing for global traffic distribution and automated failover. Overview Aspect Details Countries Netherlands, Switzerland, Norway, Greece Architecture Hybrid (on-premises + cloud VPS) Routing BGP anycast with personal ASN IPv6 /48 prefix via RIPE LIR Nodes 8 control plane, 12 workers Key Technical Components BGP & Networking Personal ASN registration via RIPE LIR with /48 IPv6 prefix eBGP peering with two upstream transit providers for anycast redundancy iBGP mesh over IPsec/WireGuard tunnels using Cilium BGP control plane NAT64 edge translation enabling IPv6 ingress to IPv4 core infrastructure Site Connectivity Full mesh encrypted tunnels between on-premises (Cisco ASA) and cloud sites (strongSwan) Geo-distributed edge nodes for latency optimization and DDoS resilience IPsec tunnels with automatic failover Kubernetes Platform Cilium CNI with eBPF dataplane BGP control plane for LoadBalancer services Cross-cluster service mesh via Cilium Cluster Mesh Architecture ┌─────────────────────────────────┐ │ IPv6 Anycast Traffic │ │ (Personal ASN + /48) │ └───────────────┬─────────────────┘ │ ┌───────────────┴───────────────┐ │ Transit Providers │ │ (eBGP - Redundant Path) │ └───────────────┬───────────────┘ │ ┌────────────────┬───────────────┼───────────────┬────────────────┐ │ │ │ │ │ ▼ ▼ │ ▼ ▼ ┌───────────────┐ ┌───────────────┐ │ ┌───────────────┐ ┌───────────────┐ │ Switzerland │ │ Norway │ │ │ Netherlands │ │ Greece │ │ (iFog VPS) │ │(Gigahost VPS) │ │ │ (On-Prem) │ │ (On-Prem) │ │ strongSwan │ │ strongSwan │ │ │ Cisco ASA │ │ Cisco ASA │ │ NAT64+eBGP │ │ NAT64+eBGP │ │ │ 5508-X │ │ 5508-X │ └───────┬───────┘ └───────┬───────┘ │ └───────┬───────┘ └───────┬───────┘ │ │ │ │ │ │ │ │ │ │ └─────────────────┴──────────────┴──────────────┴─────────────────┘ │ ┌────────────────────┴────────────────────┐ │ IPsec Full Mesh (All 4 Sites) │ │ CH ←→ NO ←→ NL ←→ GR ←→ CH ←→ NL... │ └────────────────────┬────────────────────┘ │ ┌──────────────────────────┴──────────────────────────┐ │ │ ▼ ▼ ┌─────────────────────────────────┐ ┌─────────────────────────────────┐ │ Netherlands (NL) │ │ Greece (GR) │ │ nllei01k8s │ │ grskg01k8s │ │ ┌───────────────────────────┐ │ │ ┌───────────────────────────┐ │ │ │ 3x Control Plane (HA) │ │ │ │ 3x Control Plane (HA) │ │ │ │ 4x Worker Nodes │ │ │ │ 4x Worker Nodes │ │ │ │ Cilium CNI + iBGP │ │ │ │ Cilium CNI + iBGP │ │ │ │ Proxmox VE │ │ │ │ Proxmox VE │ │ │ └───────────────────────────┘ │ │ └───────────────────────────┘ │ │ PRIMARY SITE │◄───────►│ DR/HA SITE │ │ 192.168.85.0/24 │ Cluster │ 192.168.58.0/24 │ └─────────────────────────────────┘ Mesh └─────────────────────────────────┘ Technology Stack Networking BGP: Personal ASN with /48 IPv6 prefix Transit: Dual upstream providers for redundancy Tunneling: IPsec (Cisco ASA) + strongSwan (cloud) Edge: NAT64 for IPv6→IPv4 translation Kubernetes Version: v1.34.2 CNI: Cilium with eBPF dataplane Mesh: Cilium Cluster Mesh for cross-site connectivity Ingress: NGINX with BGP-advertised VIPs Infrastructure On-premises: Proxmox VE, Cisco ASA 5508-X Cloud: iFog (Switzerland), Gigahost (Norway) Storage: SeaweedFS with cross-site replication Skills Demonstrated BGP (Border Gateway Protocol) IPv6 networking and transition technologies IPsec VPN architecture Network engineering and architecture Kubernetes cluster administration Cilium CNI and eBPF Cisco networking Linux system administration High availability clustering Project Status This project combines enterprise networking concepts (BGP, IPsec, dual-stack transition) with modern cloud-native infrastructure (Kubernetes, Cilium, GitOps) in a production homelab environment. ...
