Nextcloud High Availability (NCHA)

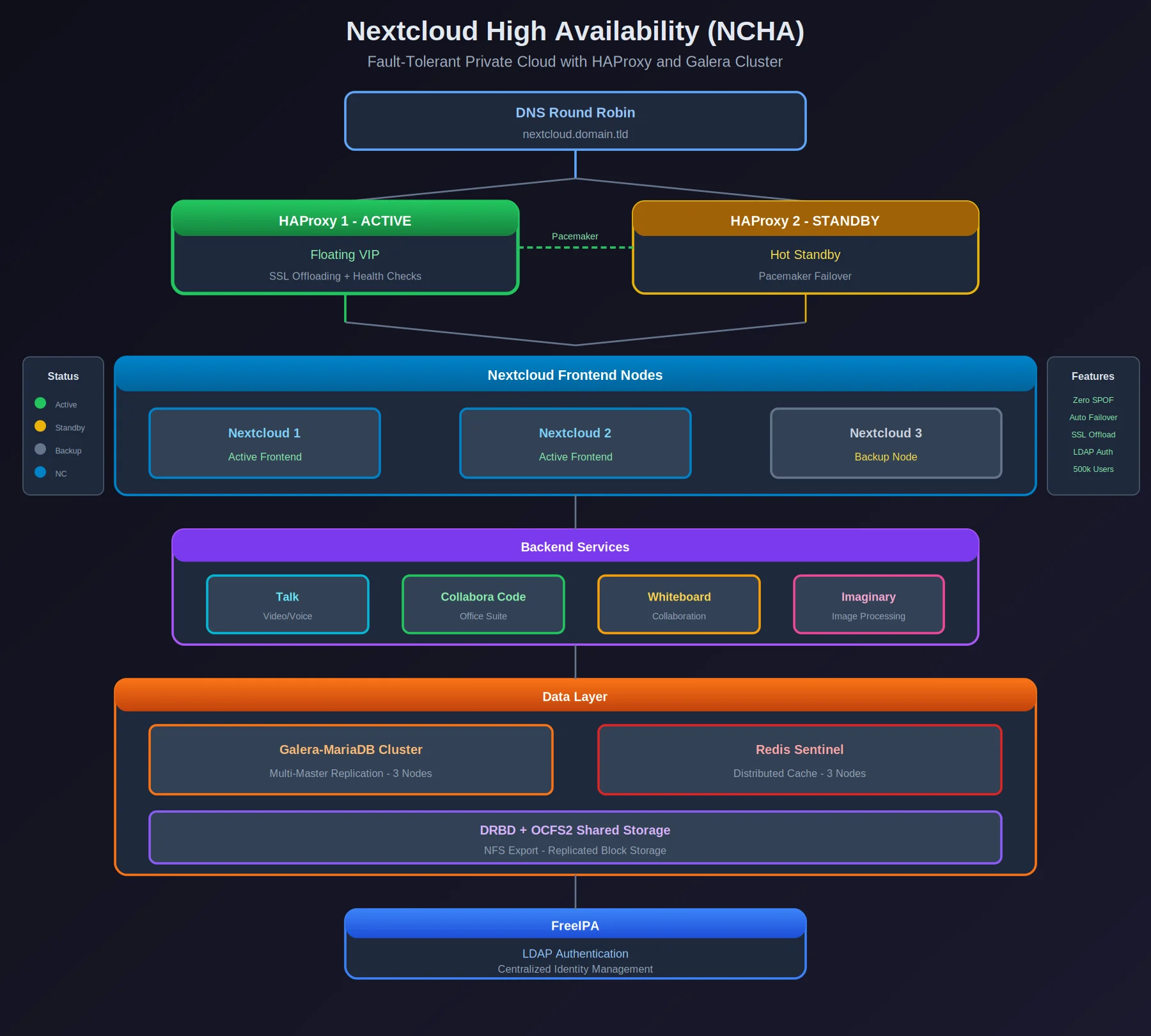

Designed and deployed a fully self-hosted, fault-tolerant Nextcloud cluster across multiple Proxmox nodes. This setup ensures continuous access to file storage and collaboration services—including Talk, Collabora, and Whiteboard—via high-availability mechanisms at both the compute and storage layers. Overview Aspect Details Load Balancing HAProxy (Layer 7) + DNS Round Robin Database Galera-MariaDB cluster Cache Redis Sentinel Storage DRBD + OCFS2 shared volumes Authentication FreeIPA LDAP Services Nextcloud, Talk, Collabora Code, Whiteboard Technology Stack Orchestration & HA Corosync + Pacemaker for VIP management HAProxy for Layer 7 load balancing DNS Round Robin for geographic distribution Storage Backend DRBD + OCFS2 shared volumes Clustered Galera-MariaDB for database HA Redis Sentinel for distributed caching Networking & Security FreeIPA-based LDAP authentication SSL offloading at HAProxy Health checks for automatic failover Nextcloud Services Frontend nodes (web servers) Backend services: Talk, Collabora Code, Imaginary, Whiteboard WebDAV for file access Infrastructure Two NVMe-equipped nodes with PCI passthrough Third arbitrator node for quorum Architecture ┌─────────────────────────────────────────────────────────────────┐ │ DNS Round Robin │ │ (nextcloud.domain.tld) │ └───────────────────────────┬─────────────────────────────────────┘ │ ┌──────────────────┴──────────────────┐ ▼ ▼ ┌─────────────────┐ ┌─────────────────┐ │ HAProxy 1 │ │ HAProxy 2 │ │ (Active) │◄───────────────►│ (Standby) │ │ Floating VIP │ Pacemaker │ │ └────────┬────────┘ └────────┬────────┘ │ │ └──────────────────┬────────────────┘ │ Health Checks ┌──────────────────┼──────────────────┐ ▼ ▼ ▼ ┌─────────────┐ ┌─────────────┐ ┌─────────────┐ │ Nextcloud 1 │ │ Nextcloud 2 │ │ Nextcloud 3 │ │ Frontend │ │ Frontend │ │ (Backup) │ └──────┬──────┘ └──────┬──────┘ └──────┬──────┘ │ │ │ └────────────────────┼────────────────────┘ │ ┌───────────────────────────┴───────────────────────────┐ │ Backend Services │ │ ┌───────────┐ ┌───────────┐ ┌───────────┐ │ │ │ Talk │ │ Collabora │ │ Whiteboard│ │ │ └───────────┘ └───────────┘ └───────────┘ │ └───────────────────────────────────────────────────────┘ │ ┌───────────────────────────┴───────────────────────────┐ │ Data Layer │ │ ┌─────────────────┐ ┌─────────────────┐ │ │ │ Galera-MariaDB │ │ Redis Sentinel │ │ │ │ Cluster │ │ (3 nodes) │ │ │ └─────────────────┘ └─────────────────┘ │ │ ┌─────────────────────────────────────────┐ │ │ │ DRBD + OCFS2 (NFS Export) │ │ │ └─────────────────────────────────────────┘ │ └───────────────────────────────────────────────────────┘ │ ▼ ┌───────────────────────────────────────────────────────┐ │ FreeIPA │ │ (LDAP Authentication) │ └───────────────────────────────────────────────────────┘ Key Features Active-active frontend nodes with load-balanced HTTPS access Shared and resilient storage using DRBD-backed OCFS2 volumes Highly available clustered database and in-memory cache layers Integrated LDAP for centralized authentication Modular auxiliary service deployment with failover support Challenges Solved Implemented cluster-aware database and NFS storage with automated failover Tuned HAProxy with backend health checks for traffic failover and load distribution Optimized service orchestration across multiple LXCs and VMs Avoided SPOFs across authentication, web, and application layers Results Achieved a robust private cloud platform with continuous uptime during simulated node failures. Cluster gracefully tolerates network disruptions and node restarts with no data loss or service interruption. ...
